Precision Incremental Encoder With Push Switch Total Rational Angle 360°

Product Categories

Ningbo Anyo Import & Export Co., Ltd.

Contact Now

Name: Precision Incremental Encoder With Push Switch Total Rational Angle 360
Brand: ANYO
Price: 1 USD

Brand Name : ANYO

Model Number : ED11305M

Place of Origin : CHINA

MOQ : 1000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30000 per day

Delivery Time : 8-10 work days

Packaging Details : 20000pcs/carton, 13kg, 40*30*25cm

Other name : Incremental Encoder

Rotational Life : 30000 times

No. of Detent : 12

Total Rotational Angle : 360°

Voltage current : 2.5mA

Rated voltage : DC5V

Contact Now

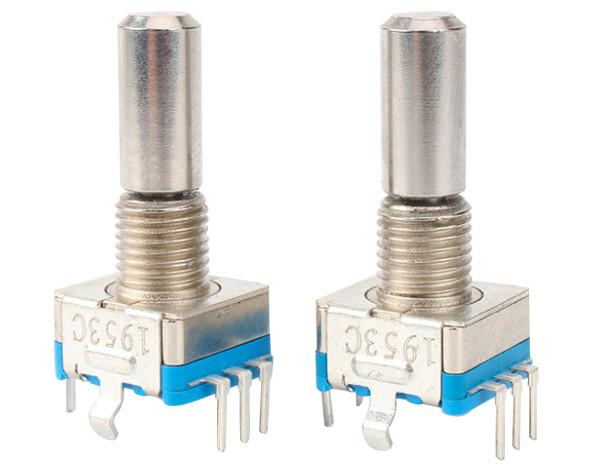

11mm Incremental Encoder With Push Switch And Total Rational Angle 360°

Electrical specifications:

Item	Specification
Rated power	DC5V, A,B lead 5mA max., C lead 10mA max.
Output signal	A,B 2 signals
Resolution	15 pulses / 360°
	20 pulses / 360°
	9 pulses / 360°
Contact resistance between terminals	1Ω max.
Phase difference	T1, T2, T3, T4≥0.08T
Slide noise	t1,t3≤3mS, t2≤2mS
Insulation resistance	100mΩ min. at DC 250V
Dielectric strength	1minute at AC300V

Mechanical Characteristics:

Item	Specification
Total rational angle	360°
Rotational torque	20~200gf.cm
Click torque	20~150gf.cm
Push-pull strength of shaft	Pull: 0.8 kgf Push: 8.0kgf min. at 10 seconds.
Shaft wobble	0.7 *L/30mm P-P max. L-shaft length
Number of detents(Click)	30 detents step angle: 12°±2°
	20 detents step angle: 18°±2°
	18 detents step angle: 20°±2°
	without detents
Bushing nut tighten strength	7.0kgf.cm min.
Shaft play in axial direction	0.4mm max.
Shaft play in rotational wobble	5° max.

Dimension:

Precision Incremental Encoder With Push Switch Total Rational Angle 360°
