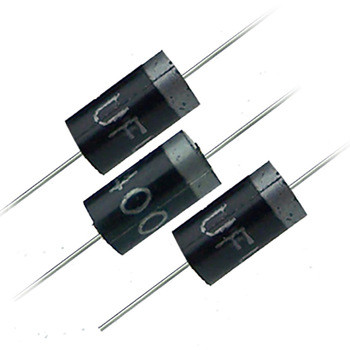

UF4007 1.0A Silicon Rectifier Diode / Ultra Fast Recovery Diode 1000V For Generator

Name: UF4007 10A Silicon Rectifier Diode Ultra Fast Recovery Diode 1000V For Generator
Brand: ANYO
Price: 1 USD

China UF4007 1.0A Silicon Rectifier Diode / Ultra Fast Recovery Diode 1000V For Generator wholesale

Brand Name : ANYO

Model Number : UF4007

Place of Origin : CHINA

MOQ : 100000pcs

Price : Negotiation

Supply Ability : 1000000PCS

Packaging Details : 50000PCS/CARTON, 14.8KG, 43*27*31cm

Delivery Time : 8-10 work days

Payment Terms : L/C, T/T

Other name : ultra fast recovery rectifier diode

Polarity : Cathode band

Mounting Position : Any

Weight : 0.3grams (approx)

Average forward current : 1A

Non-repetitive peak current : 30A

Contact Now

UF4007 1.0A ultra fast recovery rectifier diode 1000V for generator

Description:

Ultrafast rectifiers are designed in order to have very low forward voltage with an ultrafast reverse recovery. This makes ultrafast rectifier diodes very efficient for secondary output rectifications in high frequency switched mode power supplies. Ultrafast rectifiers can directly reduce switching loss and improve overall power efficiency due to a good combination between reverse recovery time and forward voltage. Some features and benefits include high reverse voltage surge capability, high thermal cycling performance, low thermal resistance and very low on-state loss. Also, the soft recovery characteristic of ultrafast rectifiers minimizes power consuming oscillations.

Ultrafast Rectifiers are made for negative switching power supplies, as free wheeling diodes (such as in motor applications) and for use in inverters. They can also be found in military and other high reliability applications. Other regular applications include desktop personal computers, laptop and printer AC adaptors, DVD AC/DC power supplies, monitors, televisions and games units.

Features:

• Diffused junction
• Fast switching for high efficiency
• High current capability and low Forward Voltage Drop
• Surge overload rating to 30A peak
• Low reverse leakage current
• Plastic material has UL flammability classification 94V-0

Maximum Ratings & Thermal Characteristics:

Rating at 25℃ ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz.

For Capacitive load derate current by 20%.

Parameter	Symbol	UF4007	Unit
Max.repetitive peak reverse voltage	VRRM	1000	V
Max. RMS bridge input voltage	VRMS	700	V
Max. DC blocking voltage	VDC	1000	V
Max. average forward rectified output current at TA=75℃	IF(AV)	1.0	A
Peak forward surge current single sine-wave superimposed on rated load	IFSM	30	A
Typical thermal resistance per element	ReJA	50	℃/W
Typical junction capacitance per element	Cj	15	pF
Operating junction and storage temperature range	Tj TSTG	-55 to +150	℃

Electrical Characteristics:

Rating at 25℃ ambient temperature unless otherwise specified. Resistive or Inductive load, 60Hz.

For Capacitive load derate by 20 %.

Parameter

Symbol

UF4007

Unit

Max. instantaneous forward voltage drop per leg at 1.0A

1.7

Max. DC reverse current at rated TA=25℃

DC blocking voltage per element TA=25℃

100

Dimension:

UF4007 1.0A Silicon Rectifier Diode / Ultra Fast Recovery Diode 1000V For Generator
